The BPBIO750 can have a logo uploaded to the device, to be printed on the result sheet. However the logo needs to meet specific criteria such as size, name, and format. To make it easier, we create a template.
How to create and upload the logo :

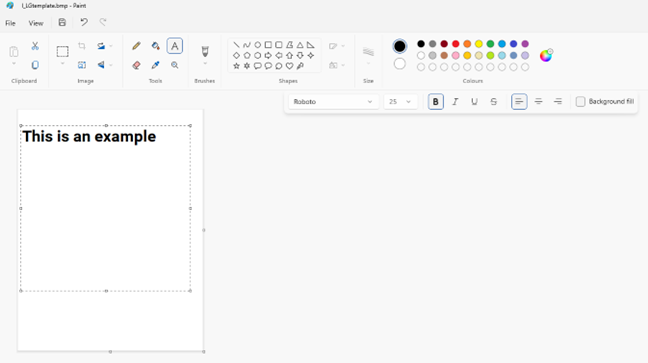

1 – Download the template attached (or here)2 – Open the template with Microsoft Paint3 – Add your text, making sure the text does not touch the border of the image, using the Text box tool :

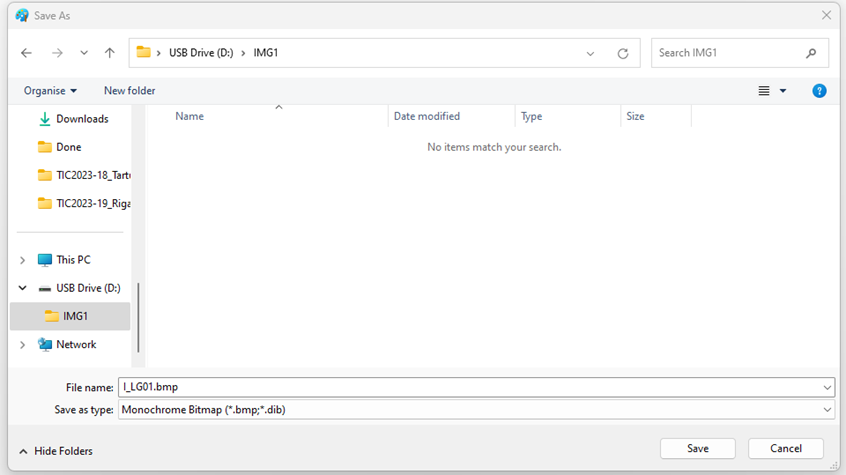

4 – Go to File>Save as> Save as BMP5 – Save the BMP file in a folder named IMG1, on an empty USB. The file should be name I_LGxx, xx being numbers :
For the BPBIO750R, the logo must be placed in a folder named 750_IMG, not IMG1
On the BPBIO
1 – Insert the USB2 – Turn on the BPBIO750 while pressing the UP button (under the print cover)3 – Release the button when UPG appears on the screen. After being uploaded the logo will be printed, and the device restart
Note : Make sure the logo print function has been activated in the user menu of the BPBIO750, option 18.
